CNC WE Wireless Tattoo Pen Machine Dual Batteries

Description

• Product Code: CNC-M-WE

• Series: CNC WE
• SKU: CNC-M-WE
• Support Operation Voltage：5.0V-11.0V
• Default Start Voltage ：5level 7.0V
• Stroke：3.5mm
• Needle Depth：0-4mm
• Battery Type：Lithium Polymer
• Power Capacity：900mAh
• Motor：made by Germany
• Length：Total141mm
• Grip diameter：31.5mm
• Weight：176g
• Package including: 1 Rotary Tattoo Machine Pen + 2 Batteries

Package including: 1 Rotary Tattoo Machine Pen + 2 Batteries

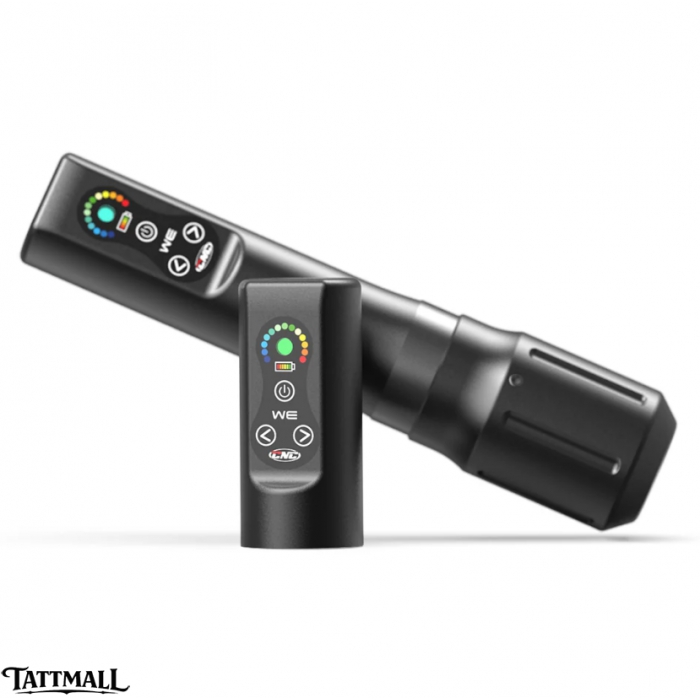

CNC-X-WE Wireless World

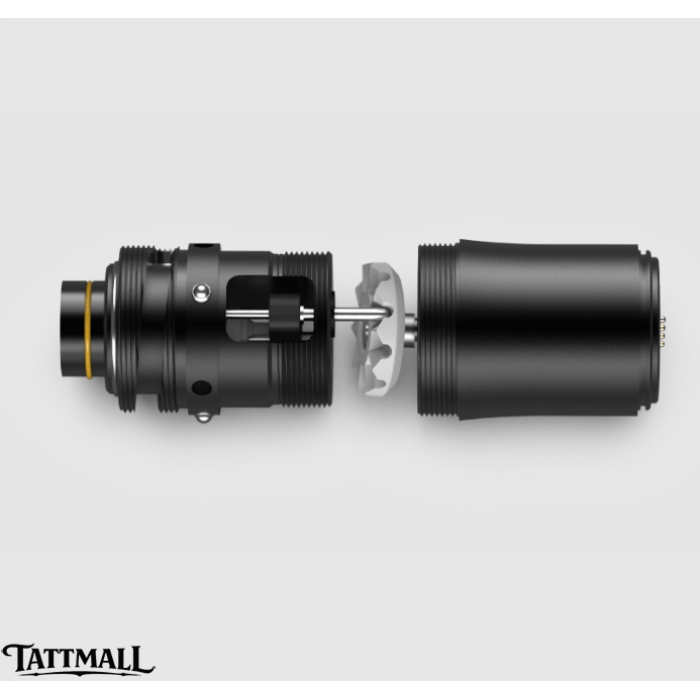

The wireless tattoo machine: CNC-X-WE is the First 100% Wireless Tattoo Pen by CNC Tattoo Supply. It inherits the stability and durability of the CNC Q series. It makes wireless work easier and breaks through the limitations of space. It’s time to cut the annoying cord off and embrace this wireless tattoo machine. CNC WE wireless tattoo pen employs a modular (3 independent modules) design that makes it easier for your routine sterilization, wrapping, usage, and maintenance.

2 Pcs Wireless Powerbolts

Wireless Tattoo Pen X-WE is equipped with two PowerBolt for cyclic use and works continuously. The battery uses 900mAh lithium polymer, which has a long life and fast charging speed.

Support work time

3.0hour-9.0hour (Test Results)

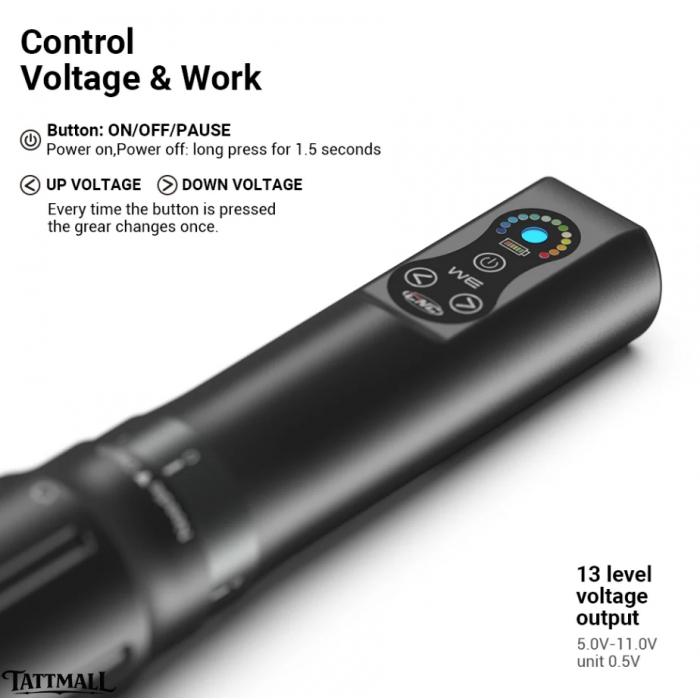

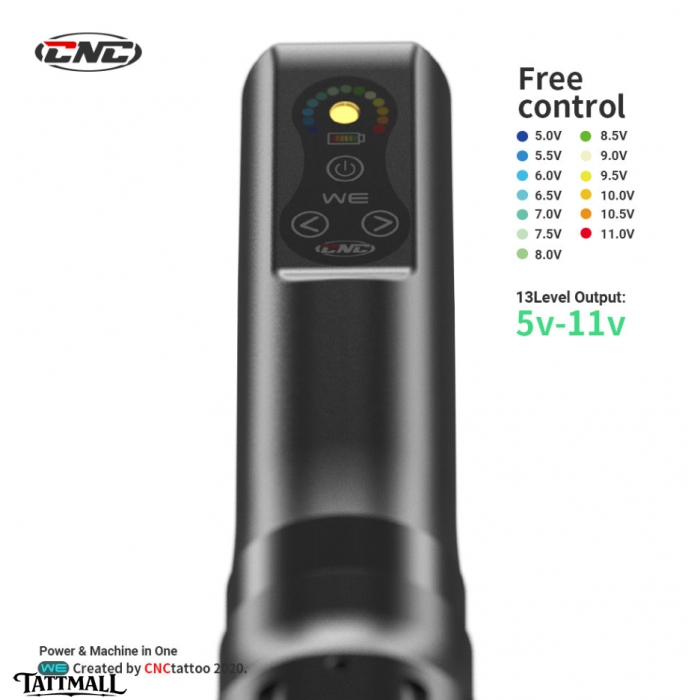

13 level voltage control

5.0V-11.0V, in 0.5V steps

Voltage output

5.0V-11.0V. Default start voltage:7.0V

Charging time

1.5 hour USB Type-C Fast charge

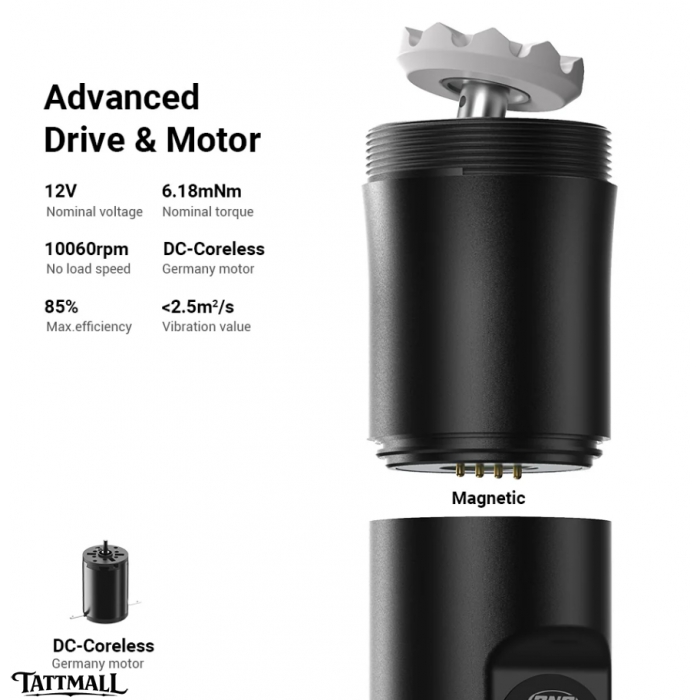

Advanced Drive & Motor

The wireless tattoo machine X-WE is equipped with a special coreless motor-DC for tattoo work. In our extensive testing and through feedback from professional tattoo artists this machine is proving to be a truly versatile tool suited to all tattoo styles. It is marked with the motors of other professional tattoo machines. It produces a smaller volume when working, improves the working time of the power bolt, and the motor has a longer life.

Wireless Tattoo Pen Parameters

12V Nominal voltage6.18 mNm Nominal torque10060rpm No-load speedDC-motor Germany Motor85 % Max. efficiency<2.5m2/s Vibration value 3.5mm Replaceable Stroke

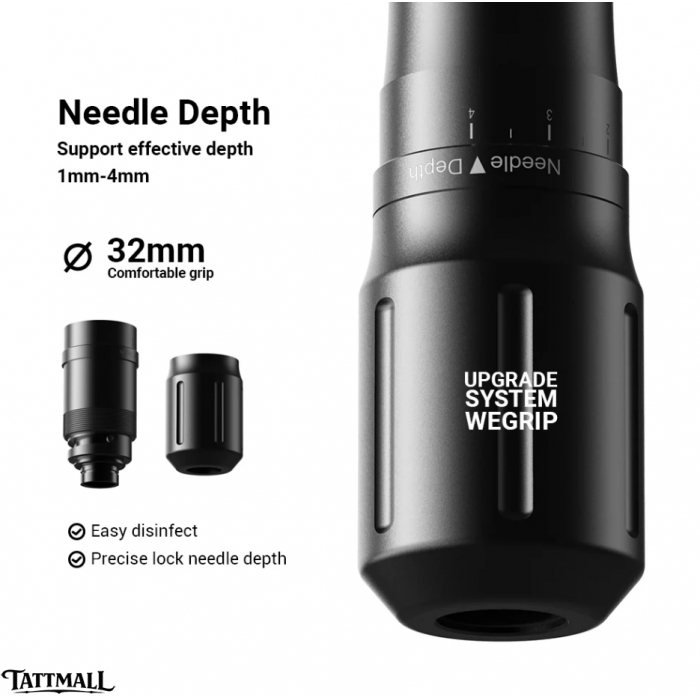

Grip & Needle Depth Adjustment

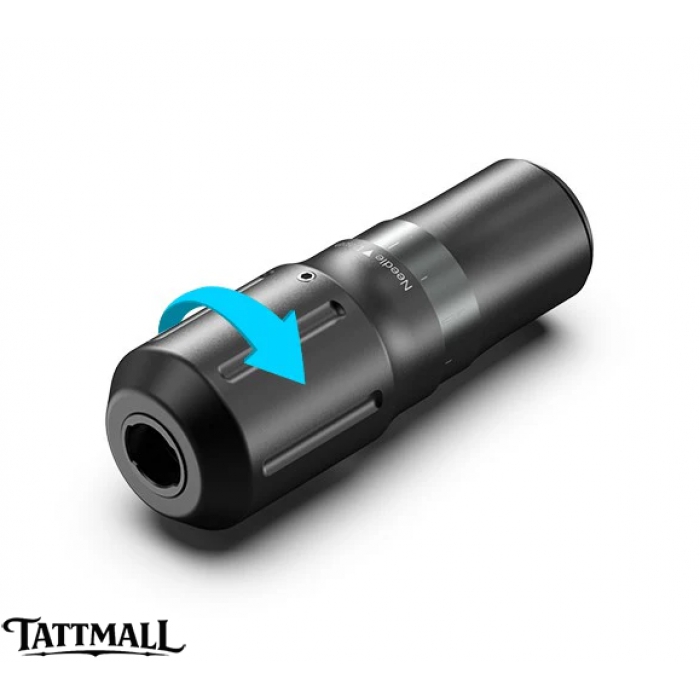

Easy to Adjust The grip supports approximately 300° rotation adjustment, and the depth of the needle changes from 0-4mm in the 300° rotation range. The grip can accurately lock the needle depth.

• Grip diameter:31.5φ
• Stroke Cam: 3.5mm(3.0 and 4.0mm cams also available)
• Length: 141mm with power pack
• Weight: 176g with a power pack, Power weight: 37.4g

Retractable cartridge slot By retracting the cartridge slot this allows a greater needle depth range. The grip is also marked to instantly show the selected needle depth. As shown, Figure 1 means that the needle length is 0mm, and this slot protrudes from the grip. Figure 2 The needle length is 4mm, this slot is retracted about 1mm in the grip.
